Location: Pleasanton, CA

Inspection Date: JANUARY TBD

Auction: JANUARY TBD

Description:

CNC HORIZONTAL MACHINING CENTER

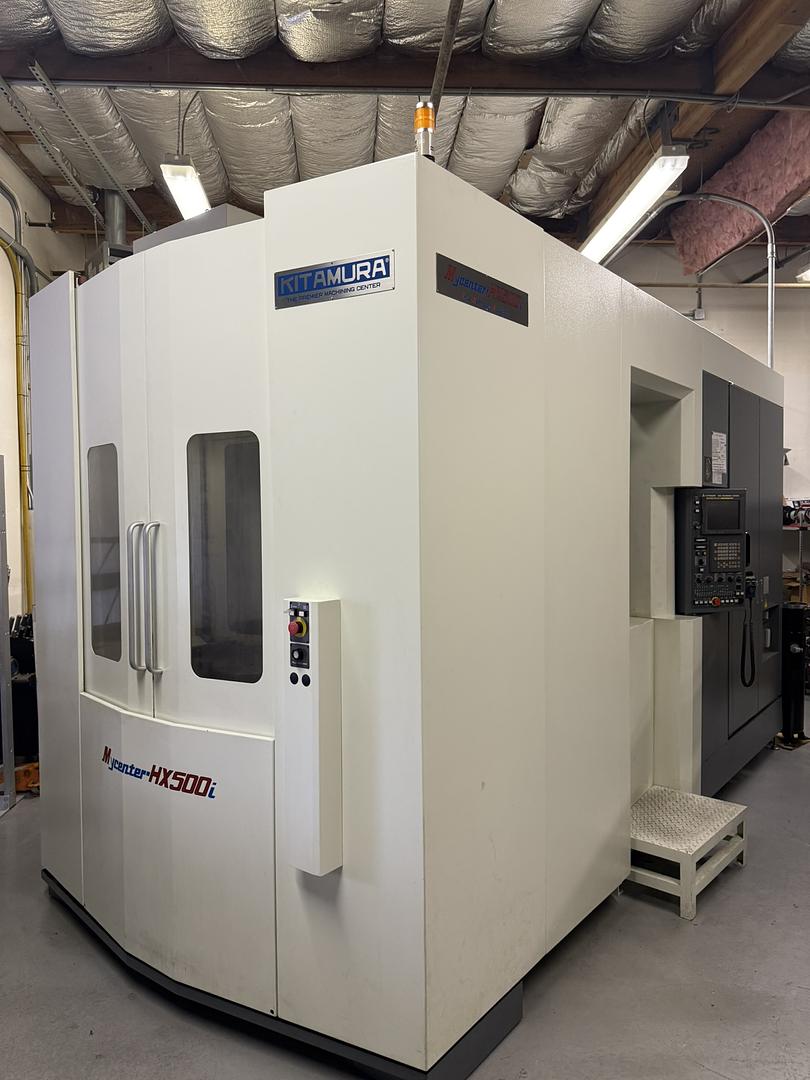

Kitamura MyCenter HX500iF APC spin-type CNC Horizontal Machining Center, S/N 43488,

Fanuc 16iMB, 12k Spindle 2-spd Gear, CAT50, 50ATC, *CTS*

(X)34.30" x (Y)28" x (Z)26" travels, 1,969" rapids

Cutting hours = 2,265

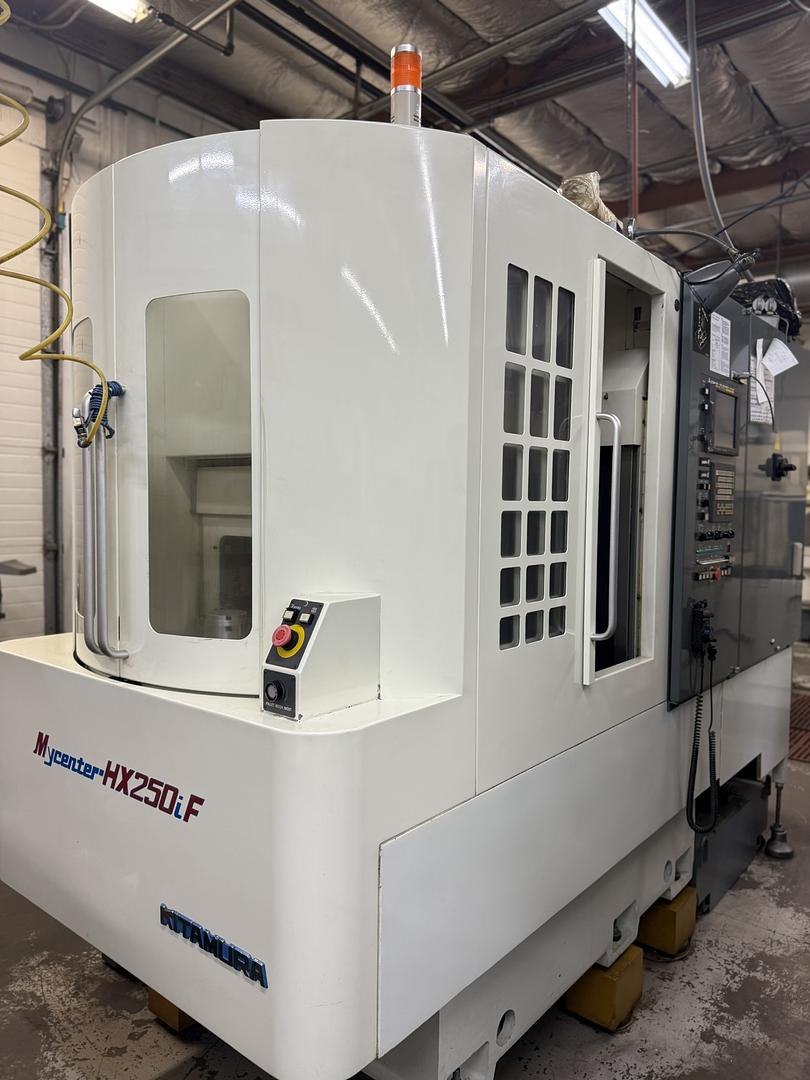

Kitamura MyCenter HX250iF APC spin-type CNC Horizontal Machining Center, S/N 81304,

Fanuc 18iMB, 15k Spindle Direct-Drive, BT30, 40ATC, *CTS*

(X)12" x (Y)12" x (Z)13" travels, 1,969" rapids

Cutting hours = 7,719

CNC VERTICAL MACHINING CENTERS

Kitamura MyCenter 2XiF APC Sparkchanger CNC Vertical Machining Center, S/N 07682,

Fanuc 16iMB, 20k Spindle 2-spd Gear, BT40, 24ATC, *CTS*

(X)20" x (Y)14" x (Z)18" travels, 1,969" rapids

Cutting hours = 15,088

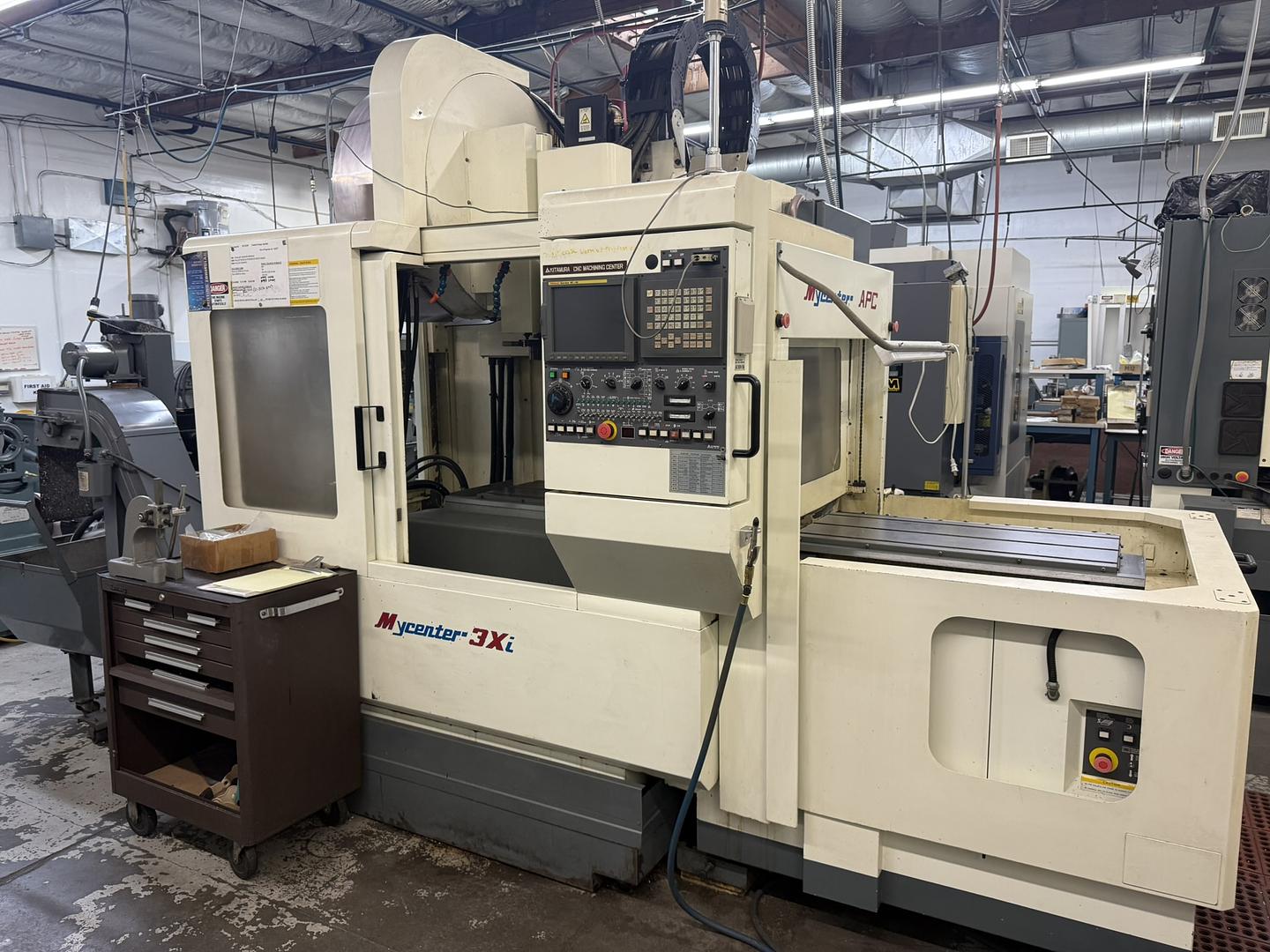

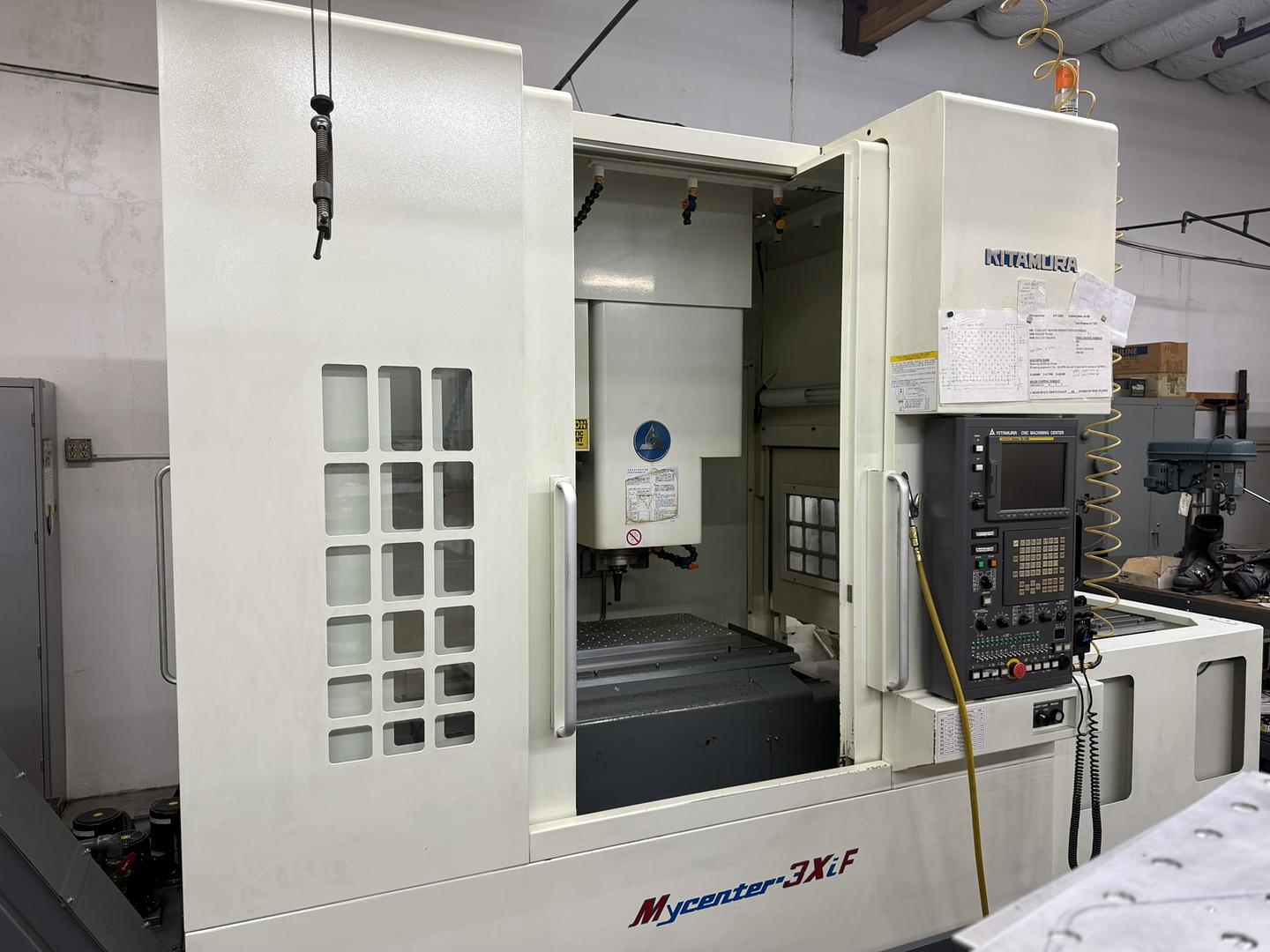

Kitamura MyCenter 3XiF APC side-shuttle CNC Vertical Machining Center, S/N 12865

Fanuc 16iMB, 20k Spindle 2-spd Gear, BT40, 30ATC,

(X)30 x (Y)17.90 x (Z)18.10 travels, 1,969" rapids

Cutting hours = 4,853

Kitamura MyCenter 3XiF APC side-shuttle CNC Vertical Machining Center, S/N 12130

Fanuc 16iMA, 15k Spindle 2-spd Gear, BT40, 30ATC,

(X)30 x (Y)17.90 x (Z)18.10 travels

Cutting hours = 14,980

Kitamura MyCenter 3X APC side-shuttle CNC Vertical Machining Center, S/N 11420

Fanuc 0MC, 10k Spindle 2-spd Gear, BT40, 24ATC,

(X)29.99 x (Y)17.99 x (Z)18.18 travels

Kitamura MyCenter 3X APC side-shuttle CNC Vertical Machining Center S/N 11435

Yasnac i80M, 10k Spindle 2-spd Gear, BT40, 24ATC,

(X)29.99 x (Y)17.99 x (Z)18.18 travels, needs Spindle Servo

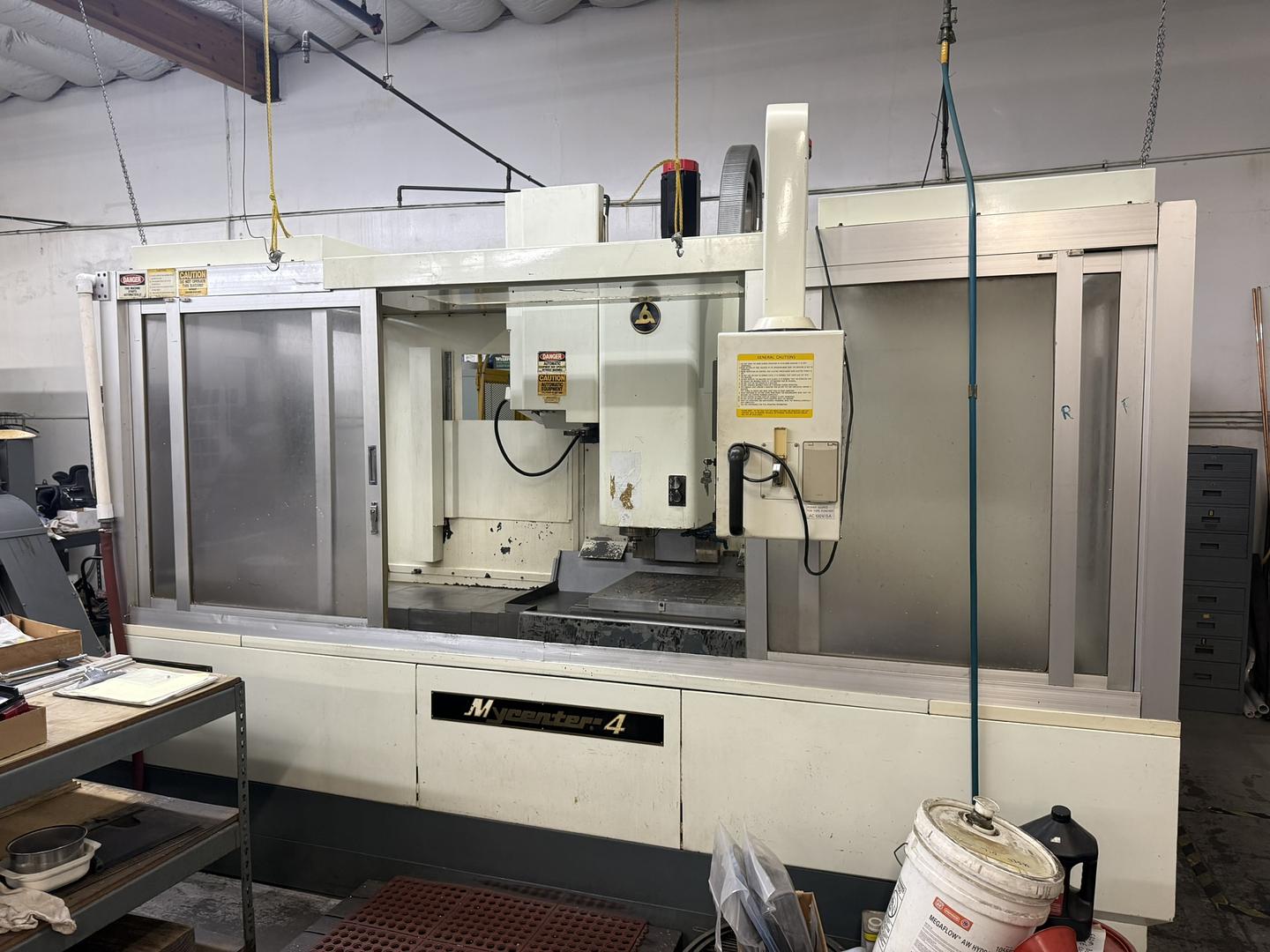

Kitamura MyCenter 4 CNC Vertical Machining Center, S/N 30581

Fanuc 0MC, 10k Spindle 2-spd Gear, BT40, 30ATC,

(X)44.37 x (Y)22.32 x (Z)22.55 travels

Run hours = 3,107

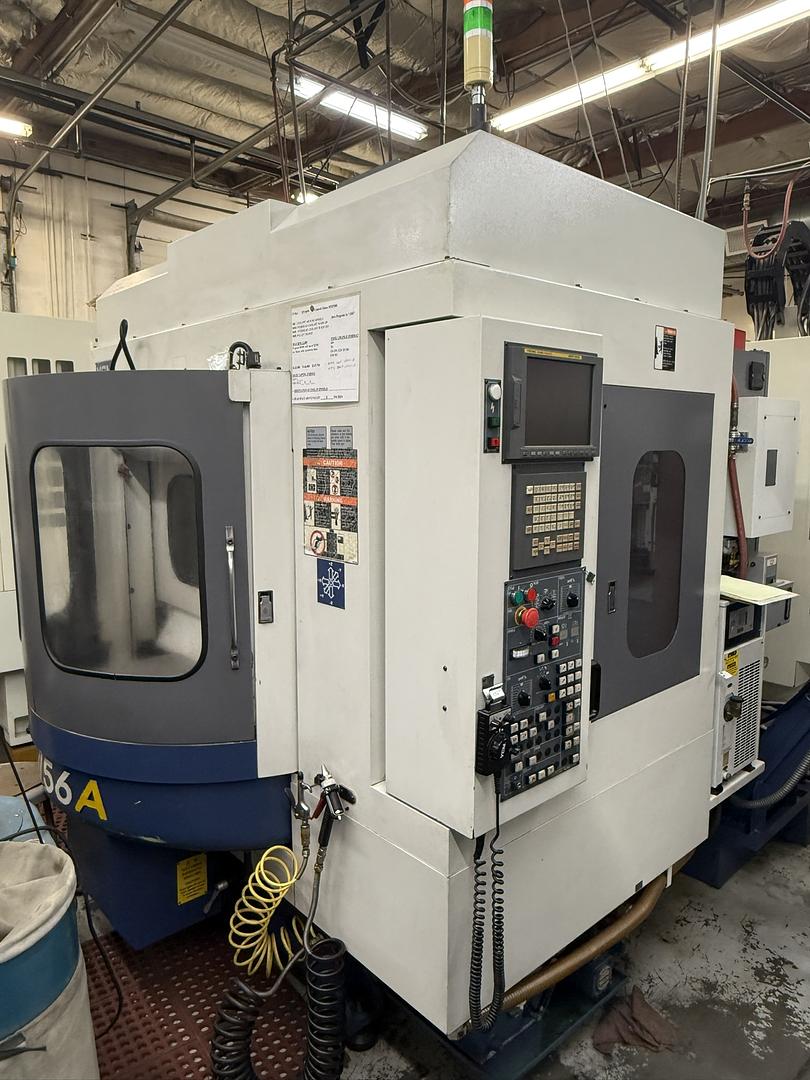

YCI FV56A CNC Vertical Machining Center, APC spin-type, S/N 0699

Vertical 12k Spindle Belt-Drive, BT40, 20ATC,

Cutting hours = 10,428

Kitamura MyCenter-0 APC Sparkchanger CNC Vertical Machining Center, S/N 75222,

Yasnac i80M, 12k Spindle Belt-Drive, BT30, 16ATC,

(X)12" x (Y)10" x (Z)12" travels

Kitamura MyCenter-1/485 CNC Vertical Machining Center, S/N xxxxx,

Fanuc 0MB, 13k Spindle Belt-Drive, BT35, 16ATC Umbrella-style,

(X)19" x (Y)13" x (Z)16" travels

Ran fine, in storage since 2010

CNC TURNING CENTER

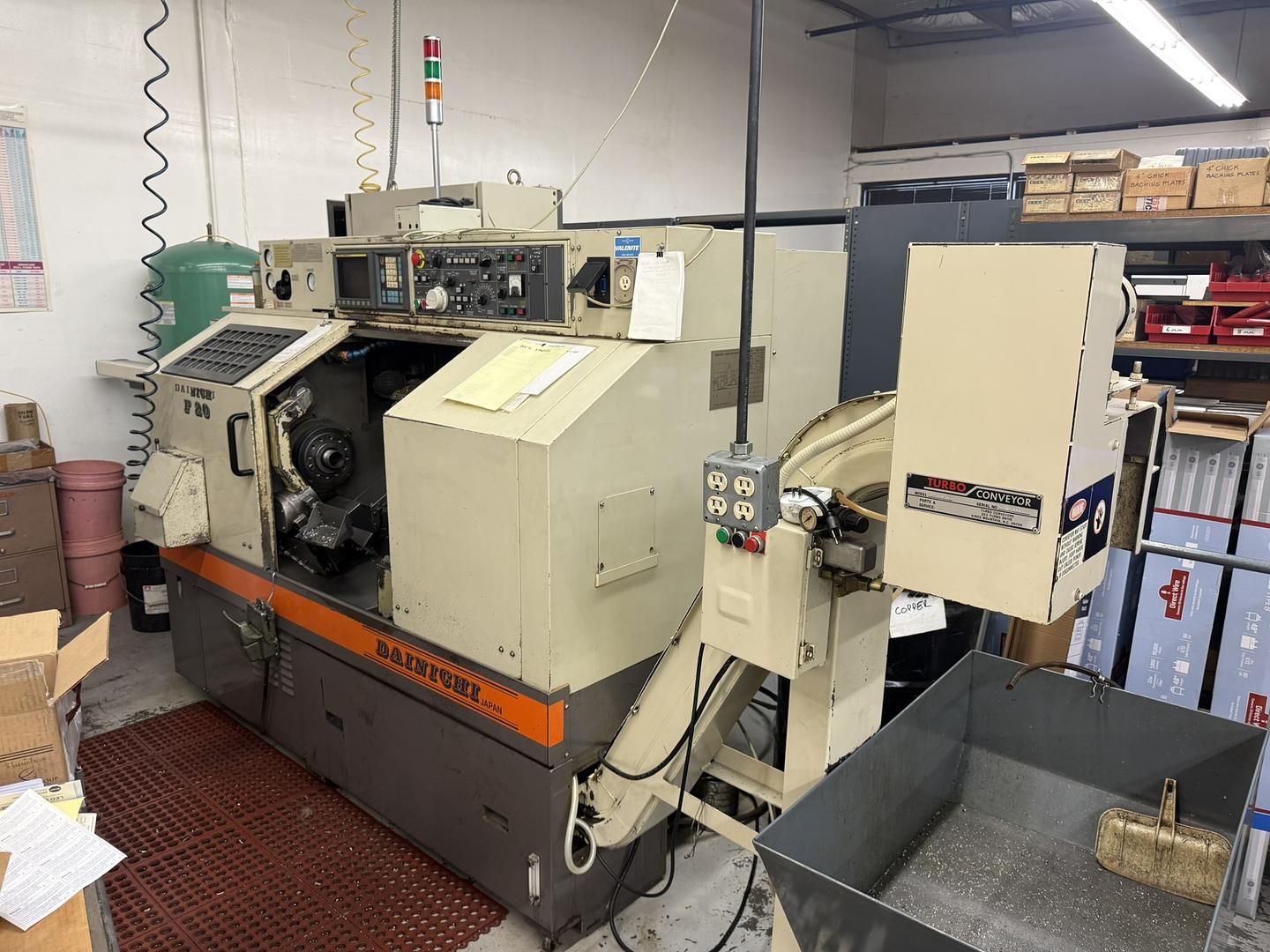

Dainichi Mdl/ F20 CNC Turning Center, Fanuc CNC Control, Tail Stock, Parts Catcher, Speed Chuck,

INSPECTION

Mitutoyo Mdl. B504B CMM w/Renishaw PH8

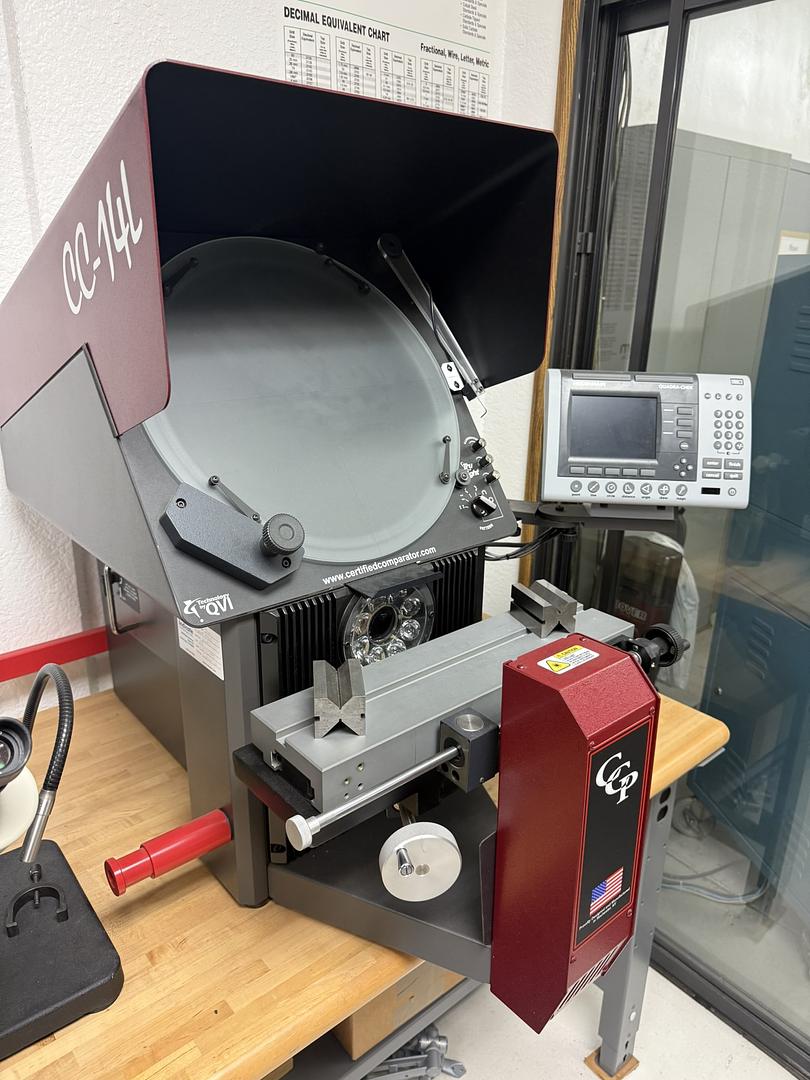

CCP Mdl. CC-14L Optical Comparator w/ Hedenhain Quadra-Chek

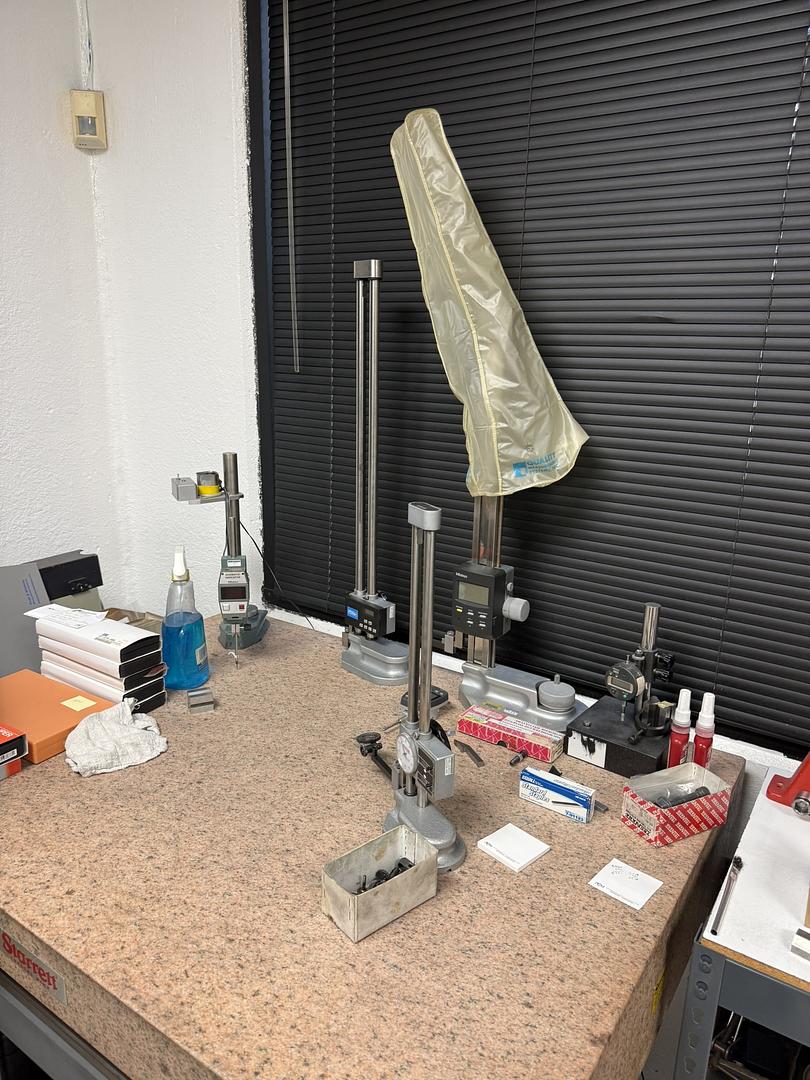

Large Quantity of Inspection Equipment

SUPPORT EQUIPMENT

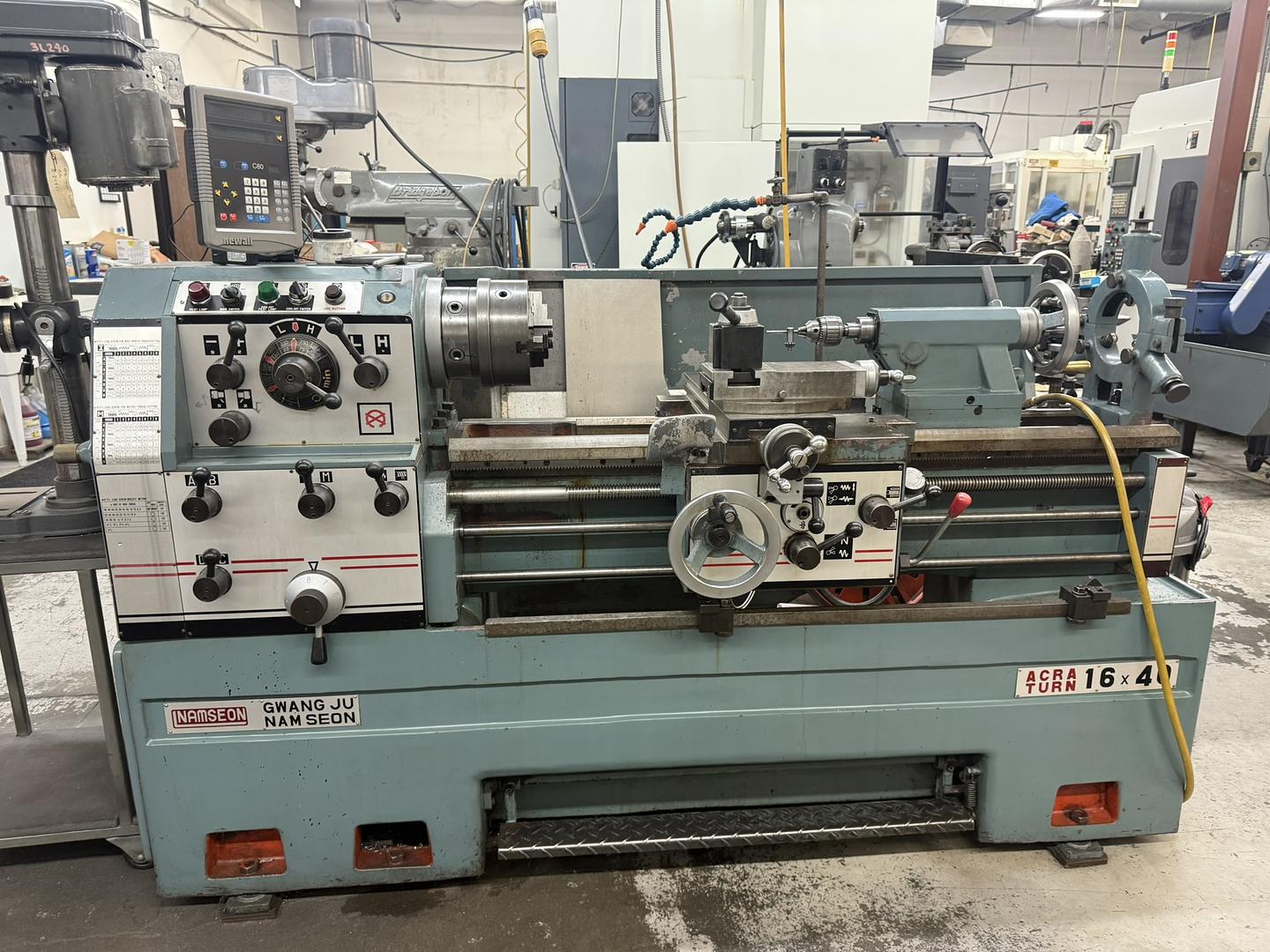

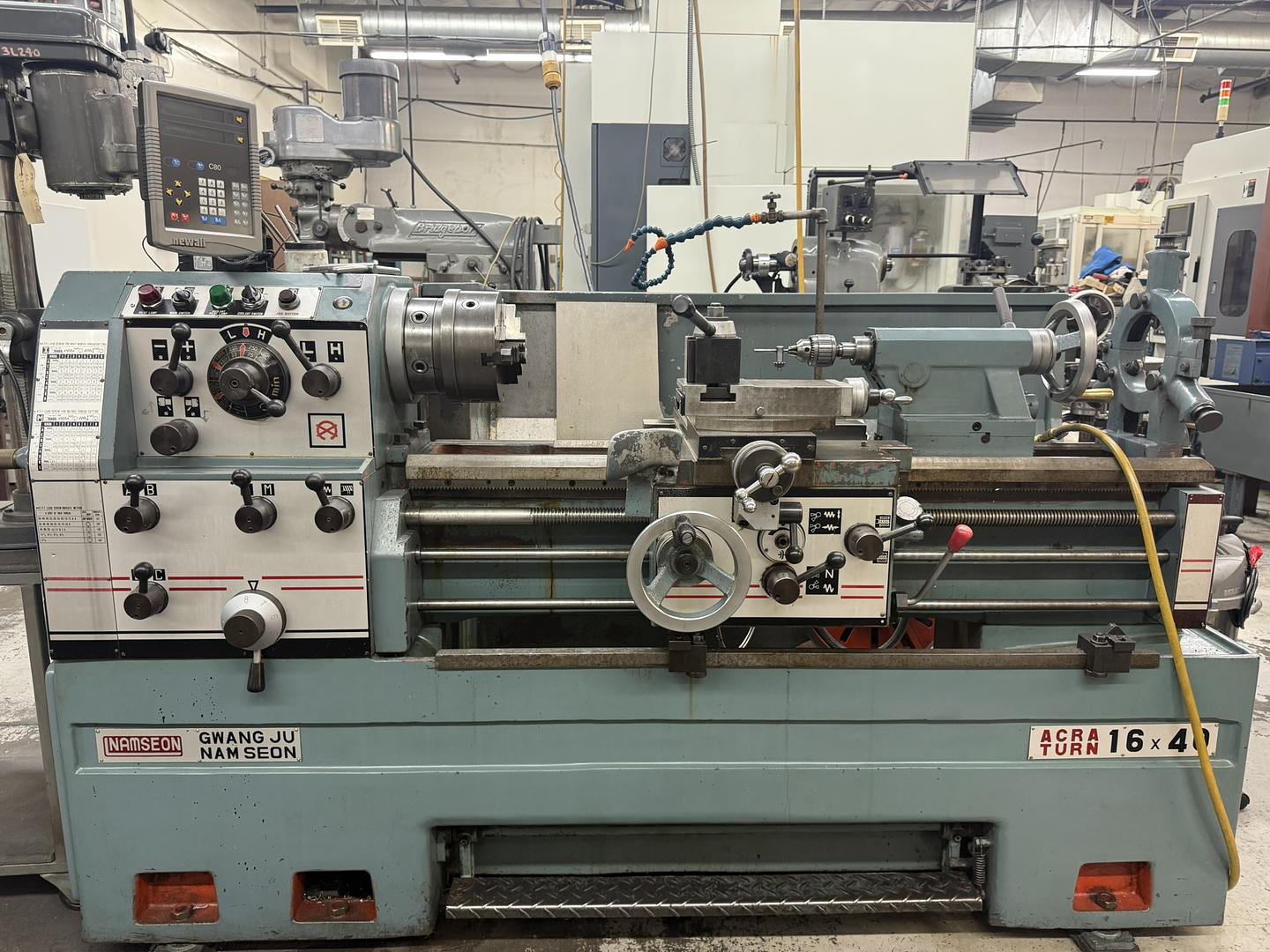

Acra Turn Mdl. 16 x 40 Engine Lathe, DRO, Tail Stock, 10” 3 Jaw Chuck, Aloris Tool Post Holder

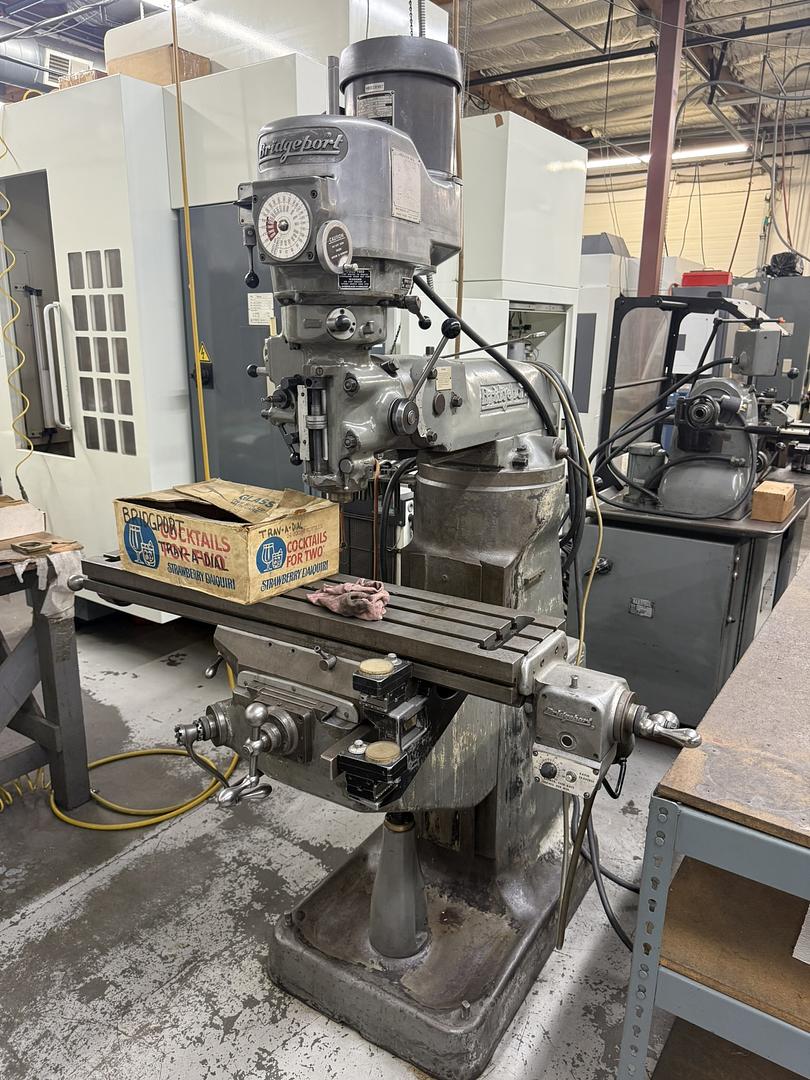

(2) Bridgeport Vertical Mill w/ DRO & Power Table,

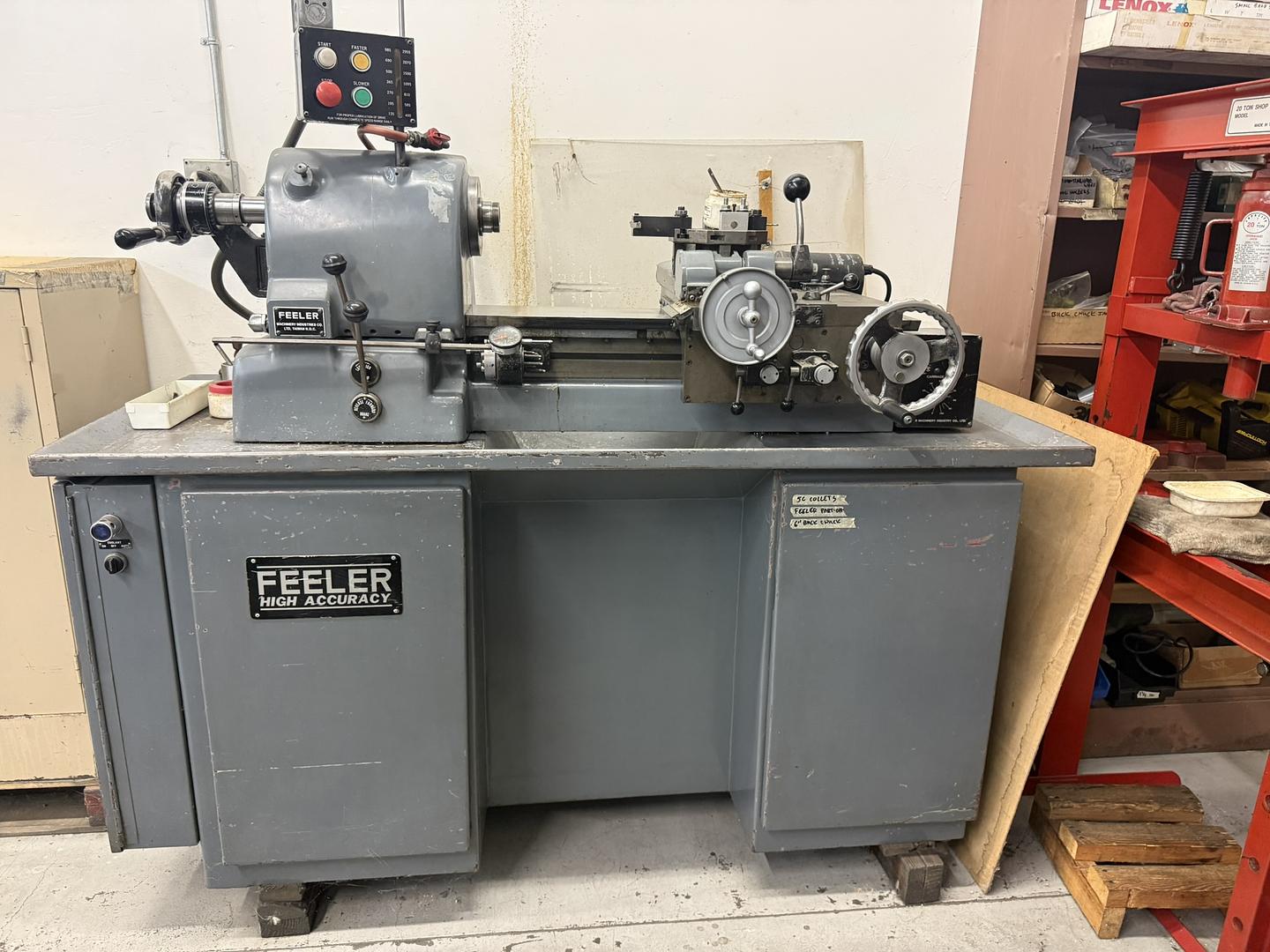

Feeler Chucker,

Grob Vertical w/ Blade Welder,

AIR COMPRESSORS

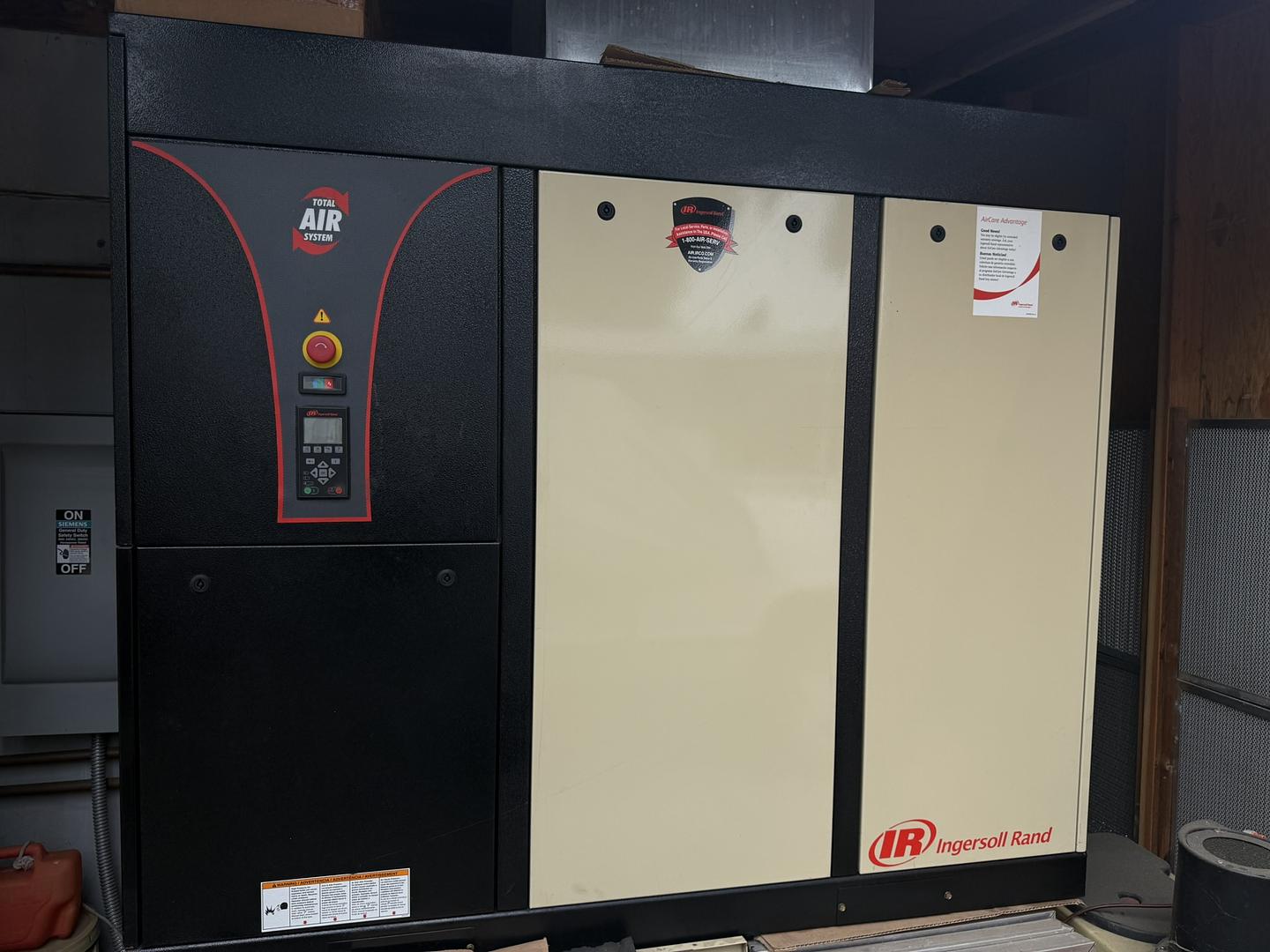

Inergsol Rand Mdl. IRN30H-TAS LV Rotary Screw Air Compressors, S/N BN1128U08290, Variable Speed Drive

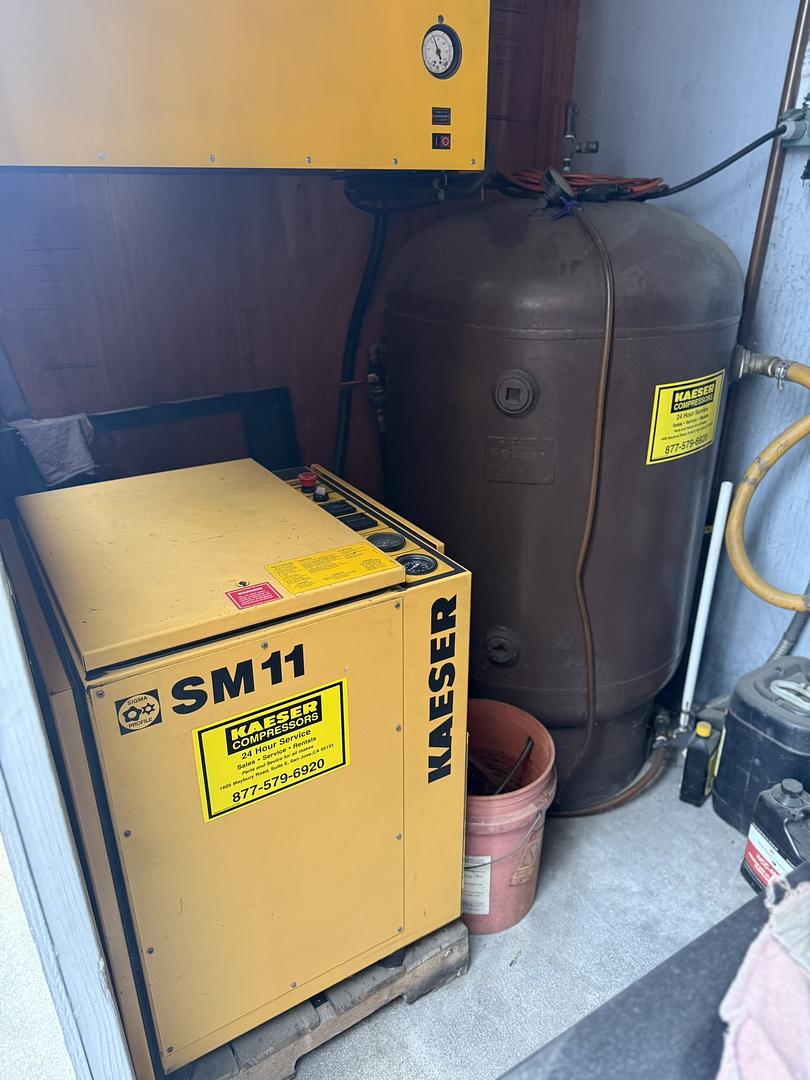

Kaeser SM11 Rotary Screw Air Compressor

CARGO VAN

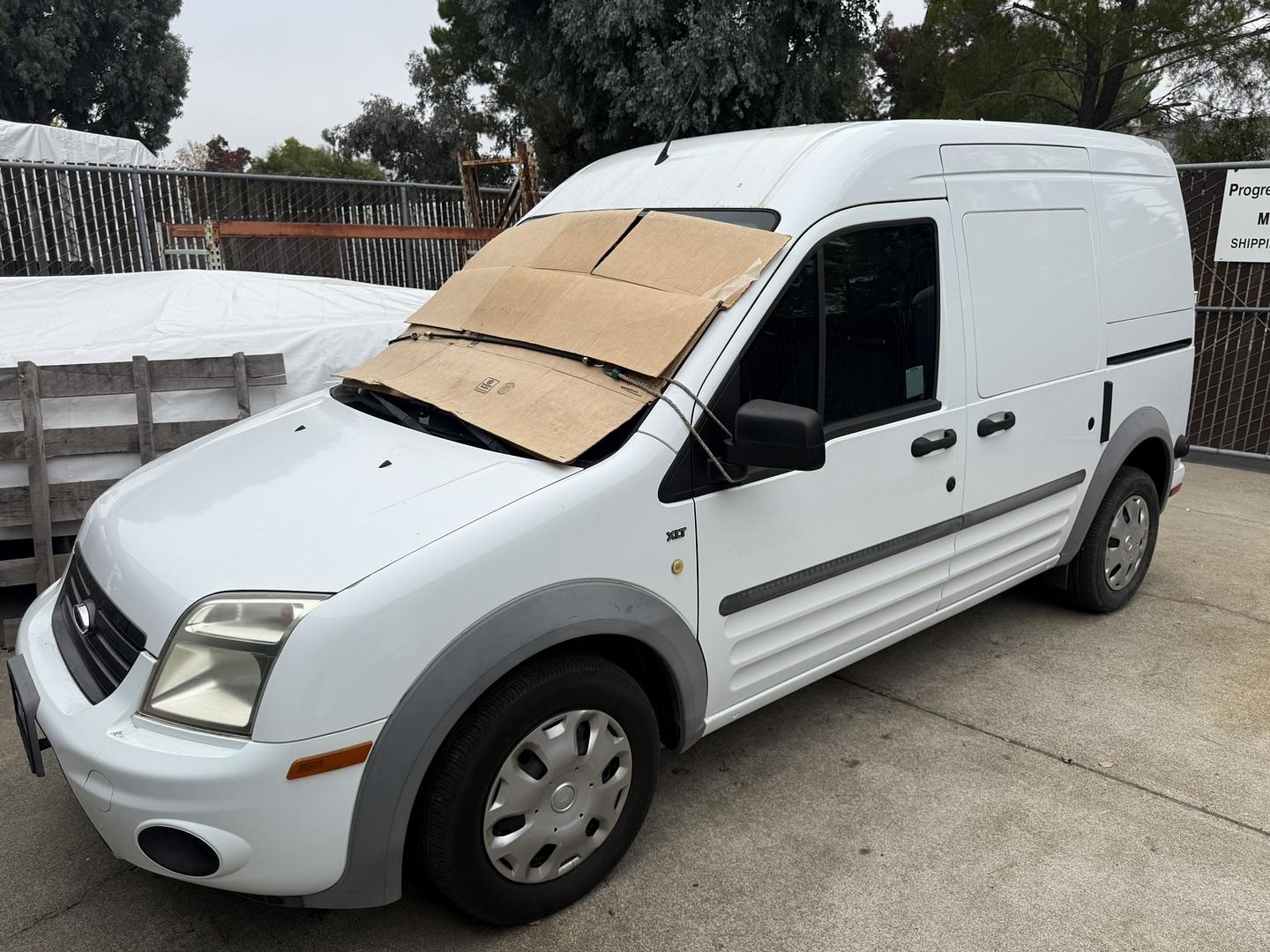

Cargo Van

Tooling

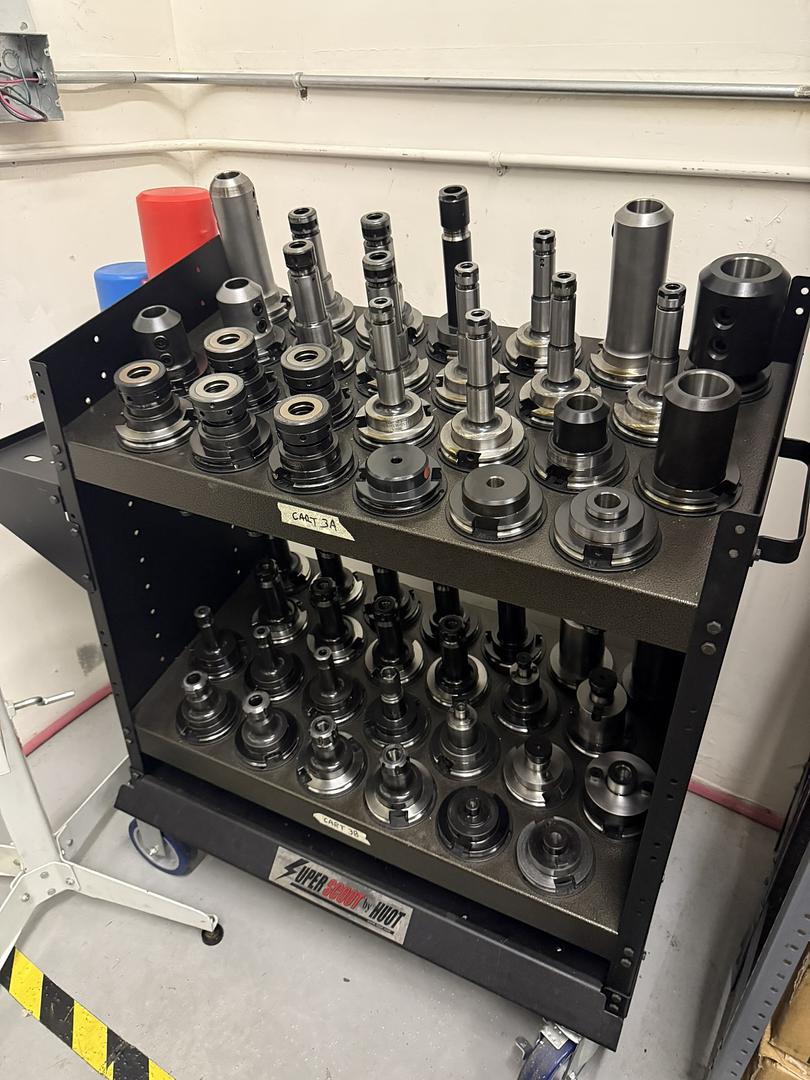

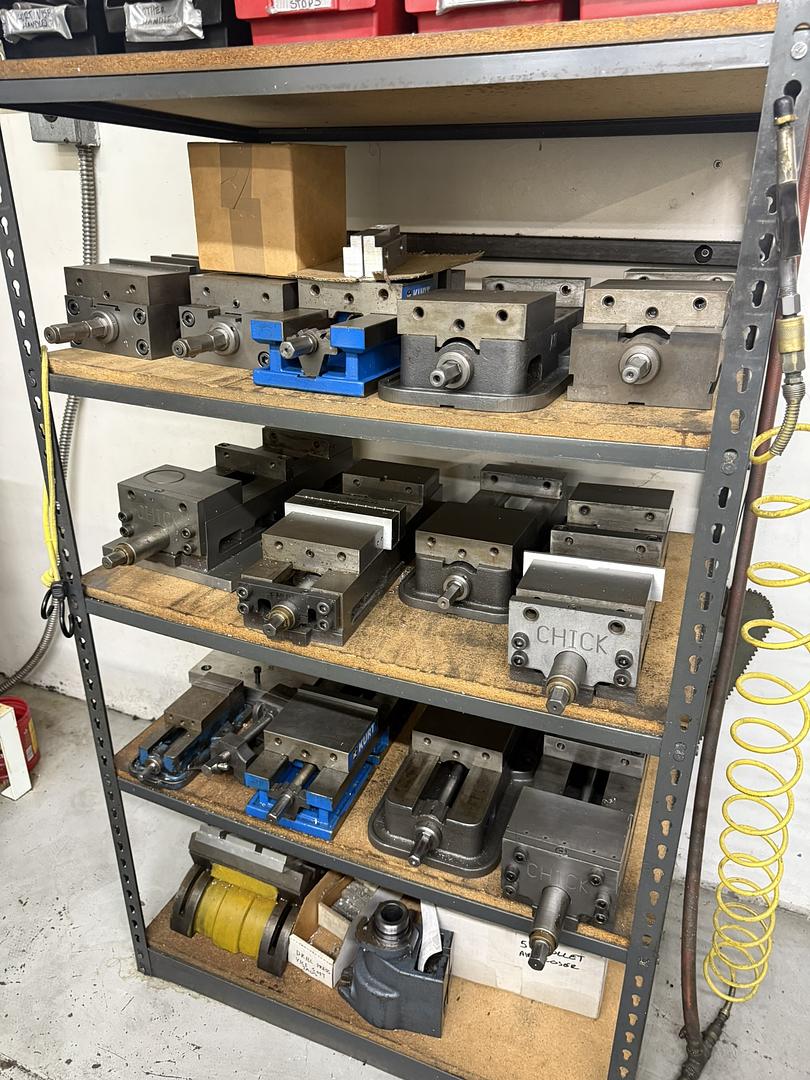

Kurt & Chick Machine Vises, Large Quantity of Taper Tooling,
