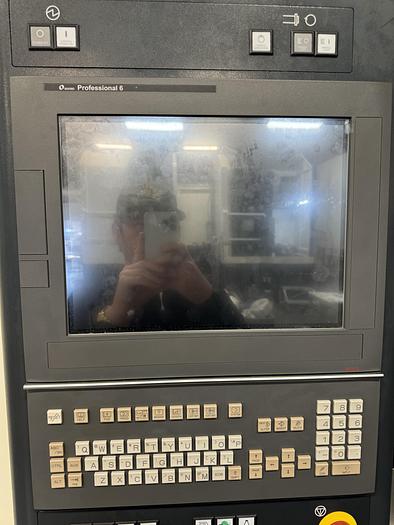

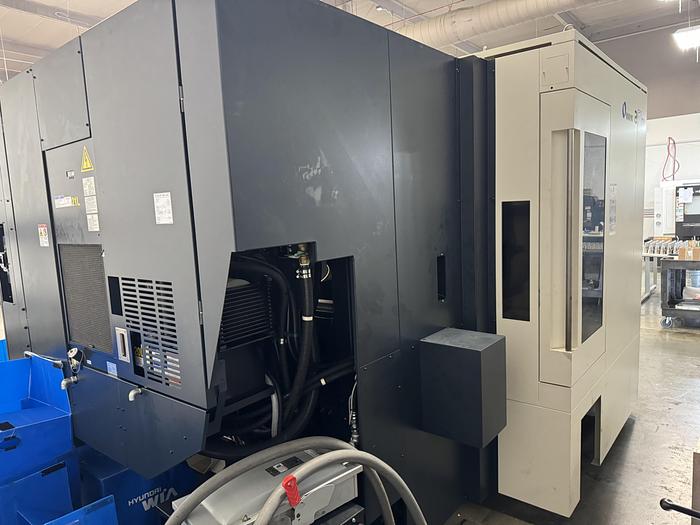

2 AVAILABLE -- 2022 MAKINO MDL A51NX CNC HORIZONTAL MACHINING CENTER! 60 ATC, 14,000 RPM SPINDLE. LOW HOURS 500. CLEAN! Price $249,900


14,000 RPM Spindle


50-14,000 RPM 50 HP duty rated, 30 HP continuous. 223 ft lb duty rated, 88 ft lb

continuous.


Rigid Tap CAT 40 Spindle Interface

JIS Retention Stud

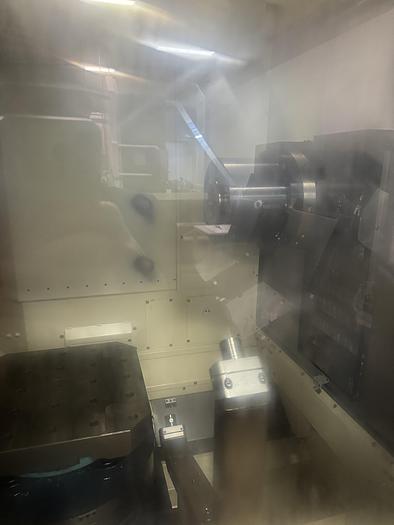

DD Motor Rotary Table

Pallet Clamp Confirmation Function


Provides error checking capability to verify that the pallet has been properly

clamped to the machine table and performs an additional `pallet lift` to allow the

pallet to seat properly or alarm if pallet is not confirmed. PCC requires 1 seconds

processing time.


Feed Axis Acceleration X/Y = 1G/1G

Automatic Grease Supply Device

60 Tool ATC

White Color Base/Texture

Pallet Changer

 Pallet Changer Safety Cover

APC Door Interlock

Random Pallet Selection


Permits the assignment of individual programs for each pallet. As the pallets are

loaded into the machine the assigned program is automatically searched in

memory, work offset compensation amounts are searched and set, and program

execution is started. In MMC applications, this function is turned off and replaced

by the MAS A5 cell controller logic.

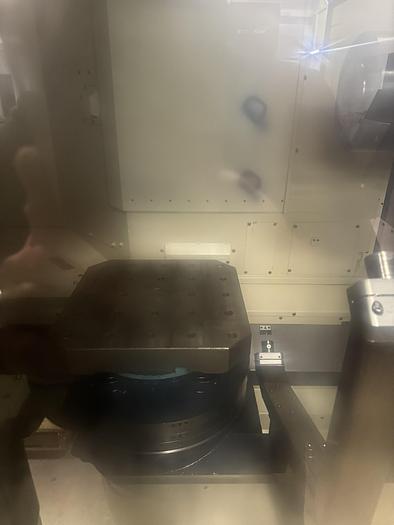

400mm Tapped Hole Pallet Specification (for 2 pallets)


400mm (15.7 inch) square tapped hole pallets with 24, M16 tapped holes.


Eight (8) Nozzle Coolant


Eight (8) coolant nozzles positioned around the spindle face.


Overhead Shower Coolant System


22 Nozzles

Terrace Washing Coolant

300 psi Through Spindle Coolant and Air



300 psi @ 7.9 gpm (60Hz) Through Spindle Coolant system and Air.



Water Soluble Coolant

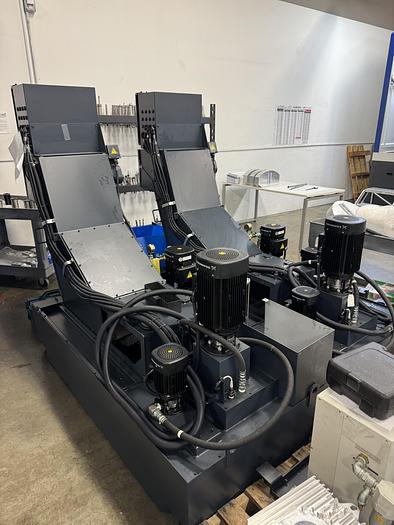

Lift-up Chip Conveyor


Left discharge lift-up conveyor. Tank capacity 515L (136 gallons). Not available

for 313 ATC


Secondary Filter For Through Spindle Coolant

Automatic Splash Guard Includes door lock and LED light.



Operator Door Lock (Operation Mode)

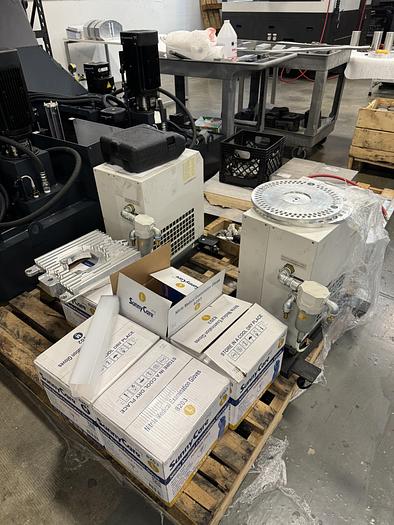

Air Dryer

Vision B.T.S. (Broken Tool Sensor)


Vision BTS camera mounted in ATC magazine.


I/O Interface for Measurement


I/O Interface Board necessary for retrofitting US supplied probing options.


Automatic Fire Extinguish Interface

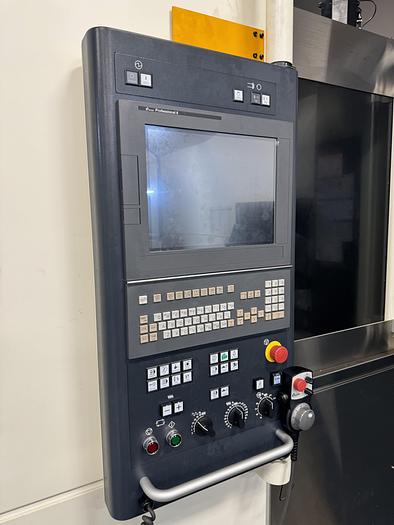

Portable Manual Pulse Generator with the Handle Enable Button

Signal Light 3-Layer

Language (English)

Screen Language Type A

Manuals Language Type A

Machine manuals/documentation are provided on a USB drive that includes;

Instruction, Periodic Maintenance, Peripheral Device, PRO6 Operation, Parts

Manual & PRO6 M-Code List.


Manuals Language Type A


Includes FANUC Instruction Manual, Parameter Manual, and Maintenance

Manual in CD media only.


Legend Plate (English) Unit: Inch

Inspection Reports in Metric (only for MM)

FANUC Guarantee (2 years)

Export Packing A (High cube container) 60Hz

460V UL Electrical Specification


Electrical components in machine`s main electrical cabinet are UL rated.



Number of Primary Control Axes : 4 Axes

Linear Interpolation Type Positioning

Linear interpolation type positioning is a positioning system in which the

respective axis movements are synchronized so that the tool path of the feed axes

is linear at all times. The path is a simple line even when multiple axes are moved

simultaneously.


Helical Interpolation (G02,G03)



Allows circular interpolation of any two (2) axes while also interpolating a linear

axis.


User Memory 2GB+1GB

2 GB Program Memory for NC program and sub program storage. This memory

is fully functional with macros and logical statements. Also includes 1 GB Data

Center capable of storing image files and machine data files.


External Setting Type Spindle Orientation



Orient the spindle to any angle via M-code, increment amount is 0.1 degrees.


Tool Offset Memory C

Fanuc Tool Offset Screen includes H, H (wear), D & D (wear).

Tool Offset 400 Pairs

Fanuc Tool Offset Screen contains registers for 400 tools.


Workpiece Coordinate System Pairs 54 (6+48)


In addition to the default six workpiece coordinate systems (G54 to G59) 48

additional workpiece coordinate systems can be used. When a P code is specified

together with G54.1, the corresponding coordinate system is selected from the

additional workpiece coordinate systems (P1 to P48).


Optional Block Skip: Total 9


Allows the operator to select certain program blocks to be skipped or not,

depending on switch selection.



Program Quick Restart Function

The Quick Program Restart function includes the conventional Program Restart

functionality and provides additionally multiple ways of efficient program restart

based on program restart memory.


Rigid Tapping Retract Function



Provides a method for retracting a tap in case of power outage, E-stop, etc.


Custom Macro Common Variables 1100


Includes Common Variables #100 to #199 (non-holding type) & #500 to #1599

(holding type)


Scaling (G51/G50)


Generates a percent multiplier of X and Y axis dimensional moves to increase or

decrease size of output geometry.


Macro Variable File Output Function


Macro Variable File Output Function is a function to output macro variables to the

Data Center by M code. Registered values on macro values such as measurement

results are available to be seen on a personal computer screen. Macro variable file,

which output to data center, is available to customize such as display on PC screen,

print out, and saving in PC by customers.


Coordinate System Rotation (G68/G69)


With this function the part, or work coordinate system, can be rotated through any

angle in increments as small as 0.001 degrees about an arbitrary center. The same

part program can therefore produce the part profile at the rotational position

selected without the need to generate a `new` program at each arbitrary angle.


High Speed Skip


Increases accuracy of the probe by increasing the frequency which the CNC

control monitors the probe for the touch trigger. (The standard skip function

setting is 0-2.0 msec., the high speed skip function setting is 0-0.1 msec.) the end

user can benefit by decreasing probing time through increasing probe feedrates at

the standard accuracy, or increase probing accuracy at the standard probe

feedrates.


Adaptive Control Function (AC Function)


Enables the cutting feedrate to be optimized according to the amount of spindle

load. If the spindle load exceeds the AC upper limit value, then the feedrate is

automatically reduced.


GI Control


Motion Control System with various functions for optimizing machine operation

by reducing cycle time and improving part quality.


Energy Saving Function


Functions provided to reduce the amount of electric power used by the machining

center. Includes Eco Mode functions for standby mode and Spindle Peak Power

Control.


MRDF


Machine Relocation Detection Function – Required for Japanese machine tool

export control compliance.


 Eight Digit Tool Codes

 Machine Set-up & Installation

 a51nxTRAINING Training

Two (2) training credits are included with each machine purchased. Each training

credit is valid for students to attend any scheduled class at a Makino training

facility. These credits are valid for one year after the installation of the machine.

Any training after this year will be on a tuition basis. Training credits are not valid

for onsite training.

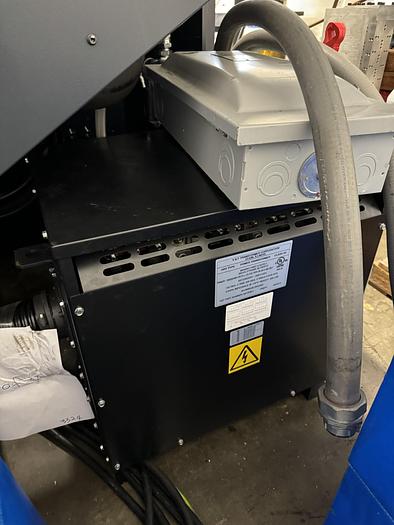

2 a51nxTRANS Transformer

 a51nxWARRANTY Machine Warranty



A two (2) year CNC warranty with a full one (1) year machine warranty from the

date of shipment excluding perishable items (e.g.: wipers, filters, covers, etc.) This

standard warranty from Makino to the original buyer is from date of shipment

from Mason, OH or port of entry.


 L6527 Machine Standard Supplies

Includes 10oz of Spindle Taper Lube and Semi-Glossy Touchup Paint

Specifications

ManufacturerMakino
ModelA51NX
Year2022
ConditionUsed
